Hikvision DS-2CD2047G2H-LIU — 4 MP Smart Hybrid Light ColorVu Bullet

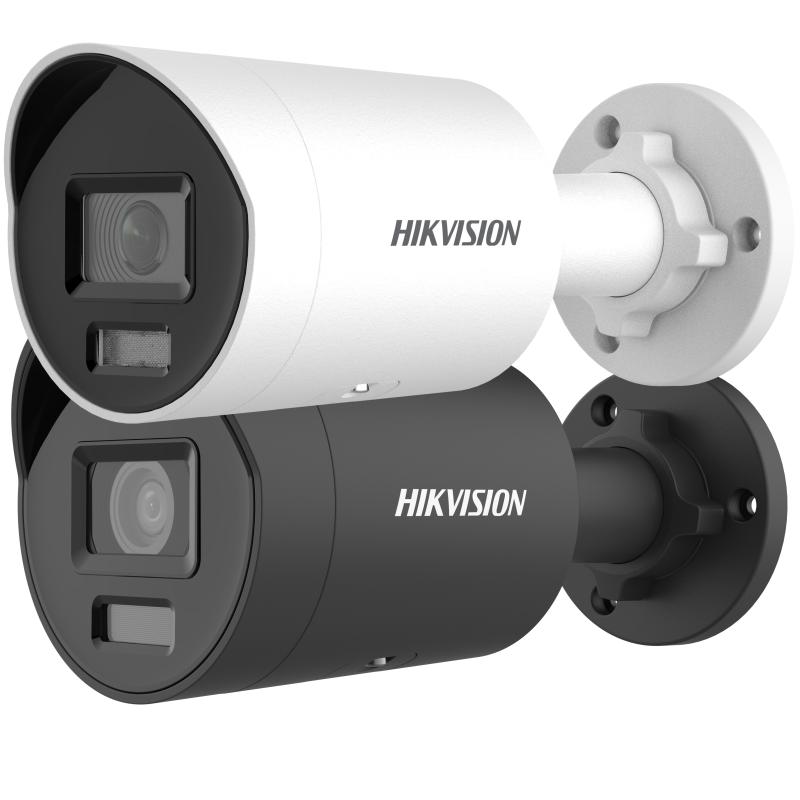

Hikvision DS-2CD2047G2H-LIU 4 MP Smart Hybrid Light ColorVu mini bullet camera in white and black

Night-time cameras have always forced an unpleasant choice. Infrared is invisible and polite, and gives you a monochrome picture in which a red car and a blue car look the same. White light gives you full colour, and blazes all night at your neighbours, your guests and your electricity bill while announcing precisely where the camera is.

This one refuses the choice. Left in its Smart mode it sits on infrared, dark and unobtrusive, until the camera classifies a human or a vehicle in the frame — at which point the white light comes on and the picture becomes colour. Nothing happens for a cat, a branch or a passing shadow, because the trigger is AcuSense classification rather than plain motion.

Underneath it is a proper ColorVu sensor: 1/1.8″, F1.0, 0.0005 lux, with 130 dB of wide dynamic range and supplement light reaching 40 m. All-metal body, 525 g, IP67, and it runs on 7 watts of standard 802.3af PoE. It comes in white and in black.

  • White light on people and vehicles only, infrared the rest of the time
  • Four selectable light modes: smart, infrared, white light, off
  • ColorVu at 0.0005 lux, F1.0, on a large 1/1.8″ sensor
  • 130 dB WDR, the widest in this series
  • 4 MP, 2688 × 1520; 2.8 mm at 104° or 4 mm at 89.2°
  • Supplement light to 40 m, infrared at 850 nm
  • White or black finish; the black is listed in 2.8 mm
  • All-metal, IP67, 525 g, PoE 802.3af max 7 W, built-in microphone

The light only comes on for people and vehicles

This is the feature the model is named after, so it is worth being exact about what it does. Hikvision’s own description of Smart Hybrid Light is short and unambiguous: white light on when humans or vehicles occur, infrared on when no human or vehicle appears.

The important word is classification. The switch is driven by the same deep-learning engine that separates people and vehicles from everything else, not by a motion threshold. Foliage moving in wind, rain, a fox crossing the drive — none of it turns the light on. A person walking up to the door does.

It is a mode, not a fixed behaviour, and you get four:

ModeWhile the scene is quietWhen a person or vehicle is classified
SmartInfrared — covert, monochromeWhite light — full colour
InfraredInfrared throughoutInfrared, with the white light available as an alarm flash
White lightWhite light throughout, colour all nightWhite light
OffNo supplement lightWhite light available as an alarm flash

Two honest notes. The supplement light reaches 40 m, so the effect stops there regardless of what the detection distances promise. And when the light does fire it is genuinely bright and genuinely visible — that is the deterrent working, but it is worth a thought before pointing one at a bedroom window across the street.

What this model does not have is a speaker. There is a built-in microphone on the -U, but no audio output and no alarm terminals, so there is no spoken warning or siren. That belongs to the /SL variants in the same family.

Behaviour confirmed against Hikvision UK’s Pro Series Smart Hybrid Light with ColorVu documentation. The product datasheet itself lists only the light types and range, not the switching logic.

What this camera actually covers

The lens is fixed and chosen at order. Switch between the two below: the 4 mm gives up fifteen degrees of width and returns fourteen metres of detection range.

Read the result against the 40 m supplement light, because on this camera the two numbers pull apart. At either focal length the detection figure runs past what the light reaches, so on an unlit site 40 m is the honest working edge after dark. Every angle and distance here is the manufacturer’s.

Loading the coverage diagram…

Full specification

Imaging, lens and DORI
Image sensor1/1.8″ progressive scan CMOS
Max. resolution2688 × 1520
Min. illuminationColour 0.0005 lux (F1.0, AGC on); 0 lux with light
Shutter time1/3 s to 1/100,000 s
Day & nightIR cut filter
Angle adjustmentPan 0° to 360°, tilt 0° to 90°, rotate 0° to 360°
LensFixed focal, 2.8 mm or 4 mm, M16 mount, fixed iris, F1.0
Focal length & FOV2.8 mm: horizontal 104.0°, vertical 54.4°, diagonal 126.7°
4 mm: horizontal 89.2°, vertical 45.5°, diagonal 108.2°
Depth of field2.8 mm: 2.5 m to ∞; 4 mm: 3.1 m to ∞
DORI at 2.8 mmD 61 m, O 24 m, R 12 m, I 6 m
DORI at 4 mmD 75 m, O 30 m, R 15 m, I 7 m
Supplement lightInfrared and white light, up to 40 m, smart supplement light, 850 nm
WDR130 dB
SNR≥ 52 dB
Image enhancementBLC, HLC, 3D DNR
Day / night switchDay, night, auto, schedule
Privacy mask4 programmable polygon masks
Video and streams
Main stream50 Hz: 25 fps; 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720)
Sub-stream50 Hz: 25 fps; 60 Hz: 30 fps (1280×720, 640×480, 640×360)
Video compressionH.265+, H.265, H.264+, H.264; MJPEG on the sub-stream
Video bit rate32 Kbps to 8 Mbps
SVCH.264 and H.265 encoding
Audio-U models: built-in microphone. No speaker or audio output
Network and interfaces
Ethernet1 RJ45 10M/100M self-adaptive
APIONVIF, ISAPI, SDK, ISUP
Network storageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
On-board storagemicroSD/microSDHC/microSDXC up to 512 GB
Built-in microphone-U models: yes
Alarm interfaceNone
Reset keyYes
ClientiVMS-4200, Hik-Connect, Hik-Central
BrowserPlug-in free live view on Chrome 57+, Firefox 52+, Edge 89+
Analytics and events
Basic eventMotion detection with human and vehicle target classification, video tampering, exception
Smart eventScene change detection
Face captureYes
Perimeter protectionLine crossing, intrusion, region entrance and exiting, triggered by human and vehicle targets
LinkageUpload to FTP, NAS or memory card; notify surveillance centre; trigger recording and capture; email
Power, housing and approvals
Power12 VDC ±25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial plug with reverse polarity protection; PoE IEEE 802.3af, Class 3, max. 7 W
MaterialFront cover, body and bracket all metal
DimensionsØ74.4 mm × 179.2 mm
WeightApprox. 525 g
Operating conditions-30 °C to 60 °C, humidity 95% or less non-condensing
ProtectionIP67 (IEC 60529-2013); no IK rating quoted
Anti-corrosionNone — the datasheet places this model in Hikvision’s “no specific protection” class, so not for coastlines, docks or chemical plants
EMCCE-EMC, IC, KC, RCM
SafetyUL 62368-1, CB (IEC 62368-1), CE-LVD, BIS
EnvironmentCE-RoHS

Available as DS-2CD2047G2H-LIU in 2.8 mm and 4 mm, in white or in black — the black finish is listed in 2.8 mm. DS-2CD2047G2H-LI is the same camera without the built-in microphone, and the DS-2CD2047G2H-LIU/SL adds a strobe and audio warning for active deterrence. Also written DS-2CD2047G2H-LIU and DS-2CD2047G2HLIU. For a DarkFighter bullet with longer infrared instead of hybrid light, see the DS-2CD2T46G2H-2I/4I. Specification sourced from the manufacturer datasheet, DS-2CD2047G2H-LI(U), 19 July 2023.
